"More than Just an Internal Coupling"
INTRODUCING
IN-X The Internal Pipe Coupling System, With An E-Xtensive Range Of Adaptors With It’s Unique Twist Lock Watertight Fitment.
The IN-X is a push fit internal connection designed to work in situations where a standard external coupling can’t be used or in instances when little or non of the external wall of the pipe is visible.
The IN-X fits directly inside the pipe and due to its unique internal plastic shell and infill ring* as well as the beveled rubber seal design, there is minimal resistance to the flow inside the pipe.

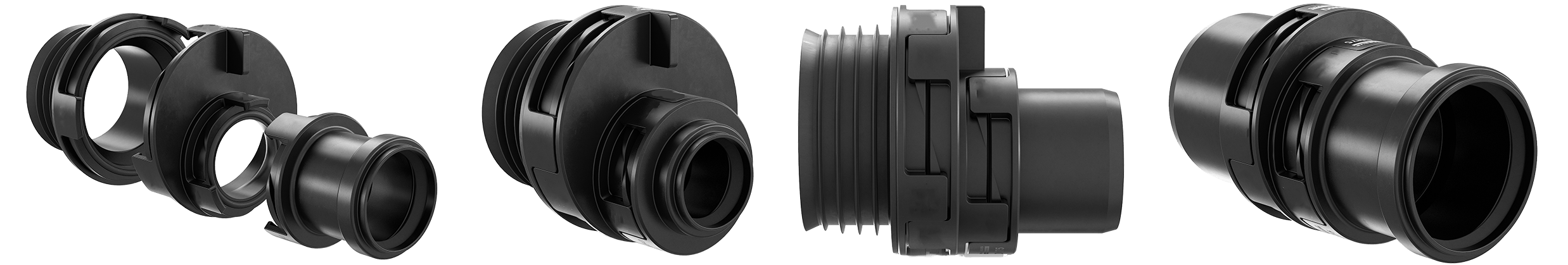

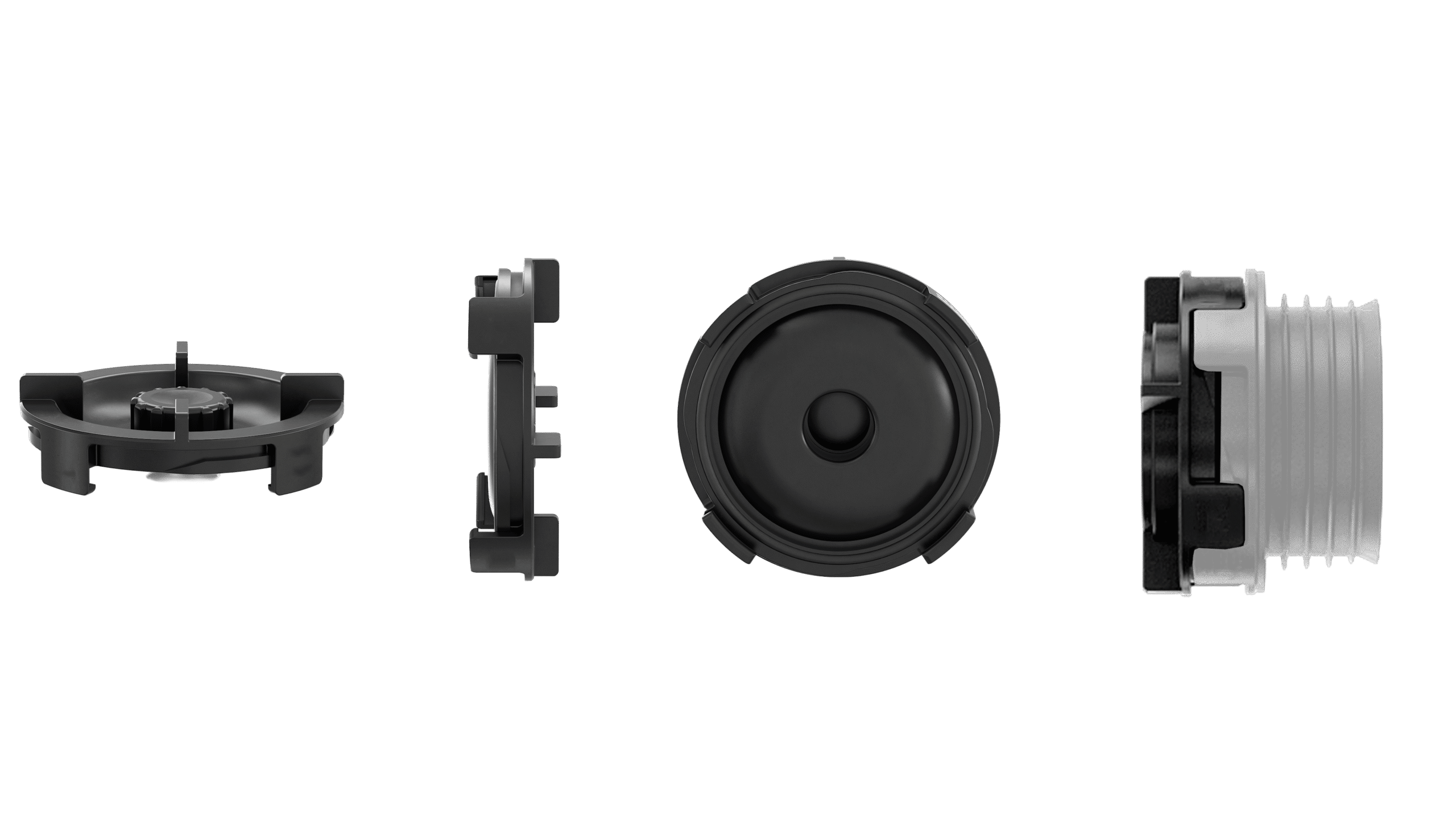

Once installed a range of adaptors, couplings, reducers or end caps can be twist locked onto each other to offer a range of solutions for almost any application. Alternatively two plug connectors and an infill ring can be used to create an Internal x Internal coupling to be used in instances where there has been damage to a pipe with little or no material to use an external coupling or for connecting two pipes of differing materials with similar/same internal diameters.
*the infill ring is used only with the internal coupling kits, this is removed when connecting a plug to any other connector.
Key Benefits:

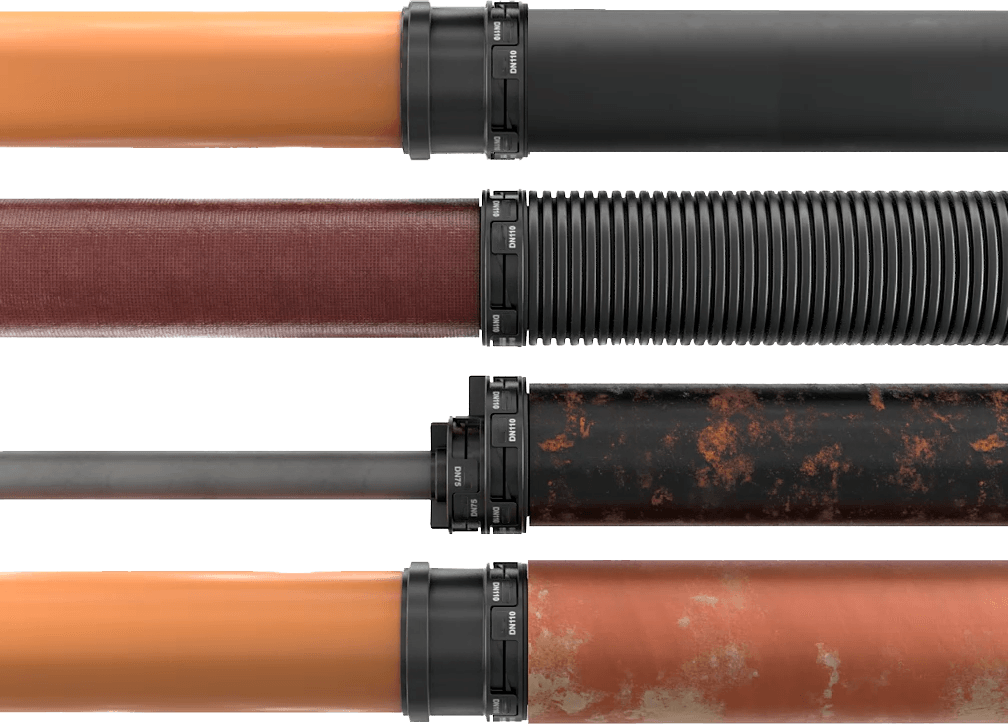

- Watertight connection to internal pipe dimensions of multi pipe materials, e.g plastic, clay, cast iron.
- Ideal for pipes sheared in concrete or concrete slabs where an external coupling cannot be used.
- Quick installation.
- Range offers multiple adaptations with its unique “twist lock” connectors.
- NO tools required.
- Able to re-use after initial installation.
- Suitable for both above and below ground applications.
- Smoother transition between pipe inverts.
- Tested to resistance of up to 2.5 bar internal pressure.
- Complies and tested to BS EN295-4:2013/ WIS 4-41-01/ BS EN1401-1:2019/ BS EN1451-1:2017/ BS EN681-1:1996

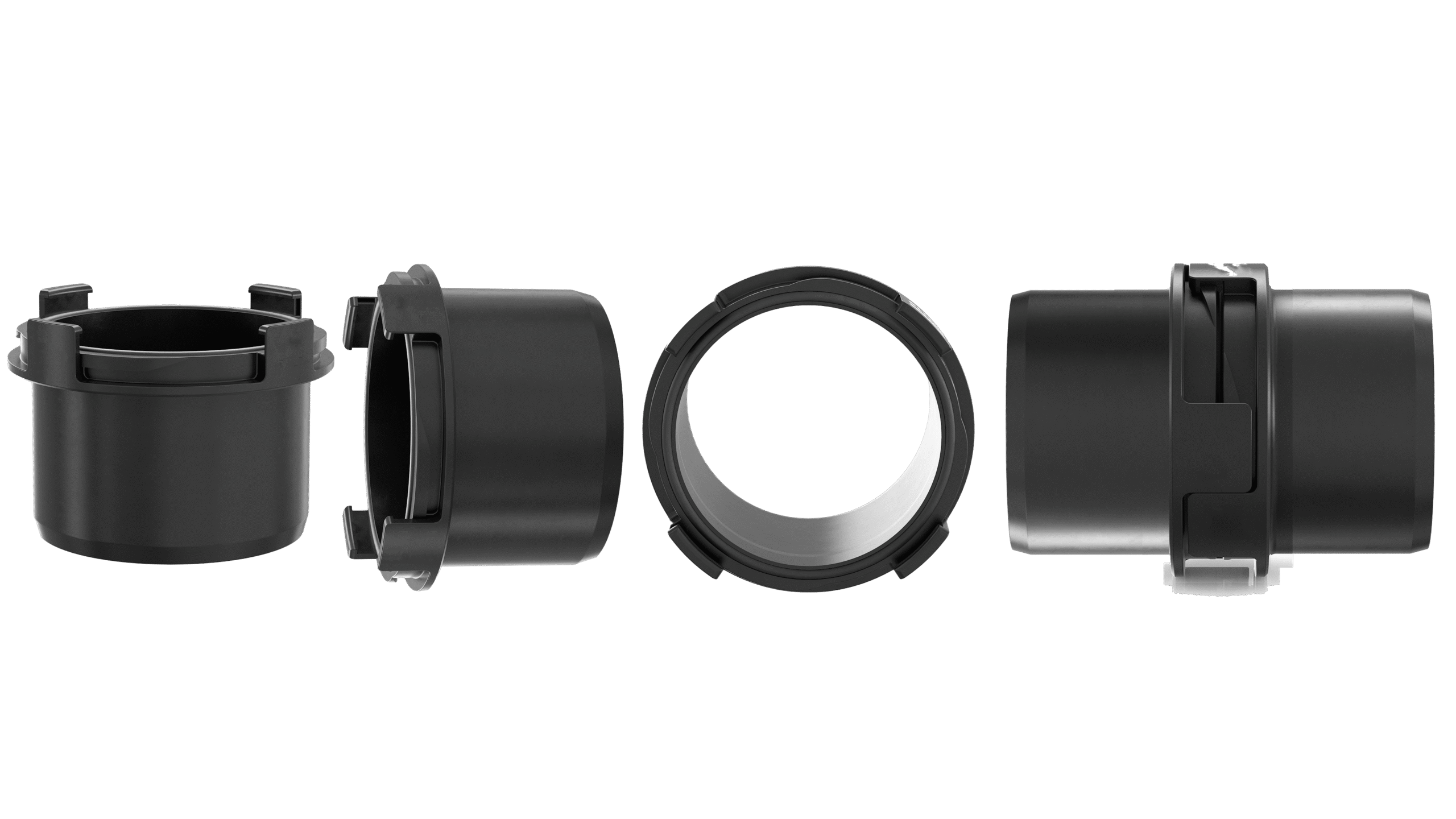

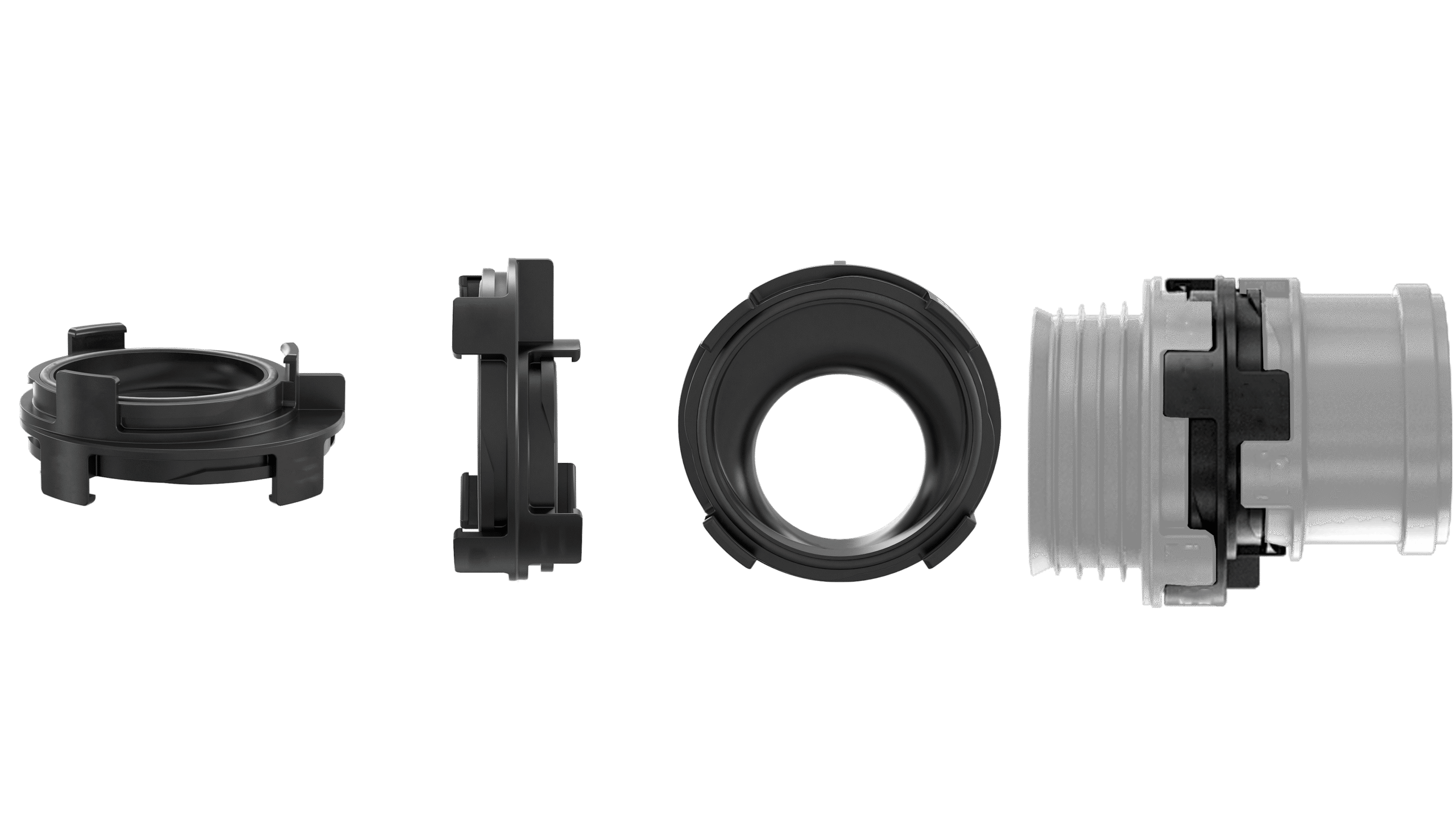

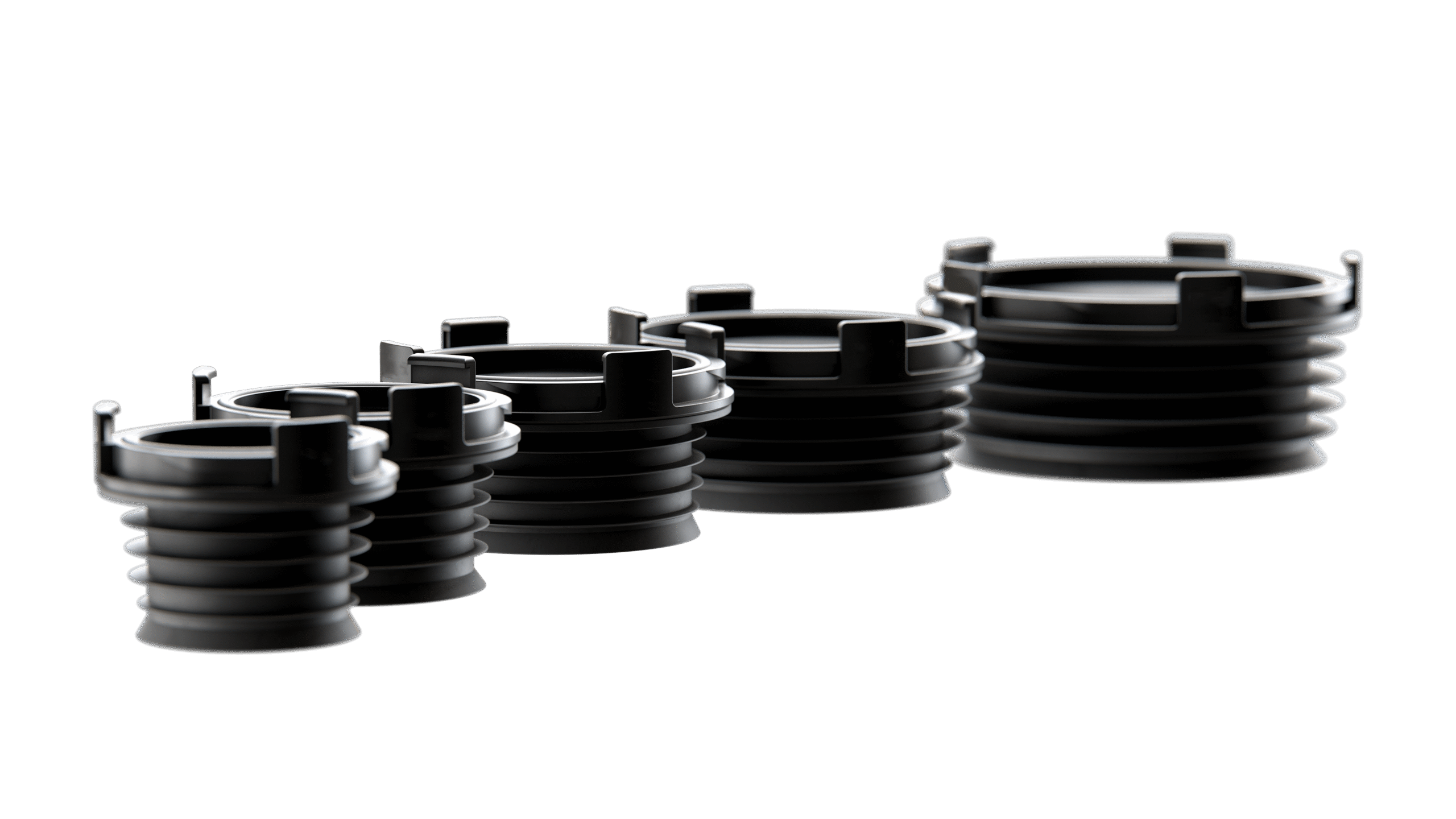

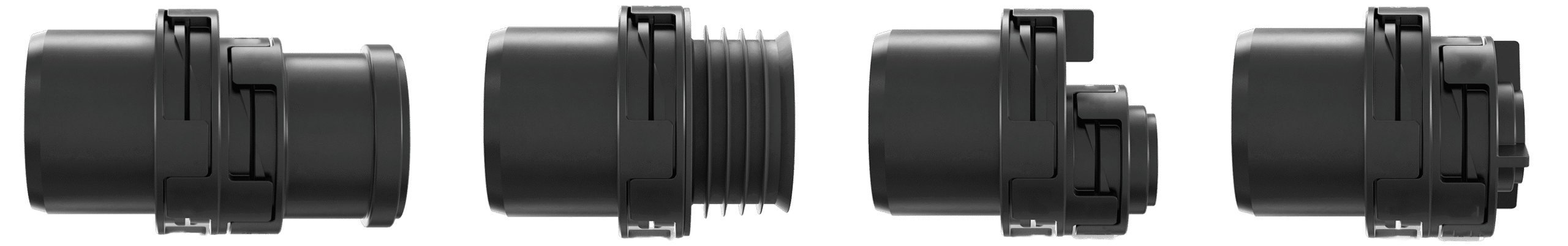

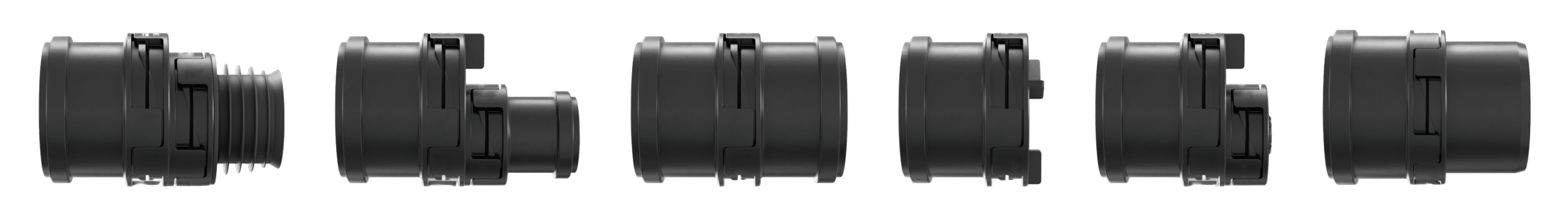

IN-X Product Range

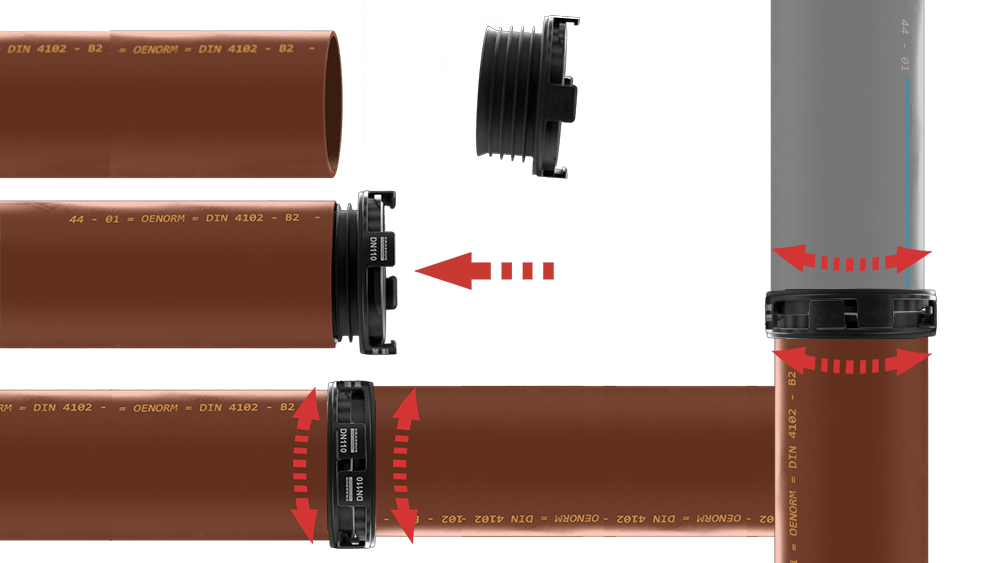

Easy Installation:
- Clean the internal surface of the pipe from any slurry or debris.
- Apply a small amount of VIPSeal Pipe lubricant to the IN-X rubber sleeve
- Push the IN-X plug into the pipe until the plastic rim is flush against the pipe
- Repeat this process on the second pipe
- With the IN-X Plug/Connector installed to the pipe, push & twist onto pipe 1.
- The tabs on the connectors should be flush, creating the watertight seal.
A Safe Click connector can be placed over the tabs to create a tamper proof installation.
For further information about the product range, or to order contact us using the below form
