End caps are perfect for permanent clean outs or temporary protective caps to prevent ingress of dirt.
They can also be used for air testing, by inserting a nipple-connection* to the end cap.
(*nipple not supplied by VIPSeal).

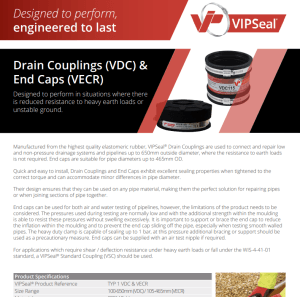

VIPSeal VECR End Caps are made from the same elastomeric rubber as the rest of the range. They cap pipes of any material up to 465mm ouside diameter. Each end cap is supplied with a 304SS tension band.
| Ref No. | Size Range |
|---|---|
| VECR115 | 105-115mm |
| VECR135 | 125-135mm |
| VECR165 | 155-165mm |
| VECR190 | 180-190mm |
| VECR215 | 200-215mm |
| VECR250 | 235-250mm |
| VECR270 | 255-270mm |
| VECR315 | 300-315mm |
| VECR360 | 345-360mm |
| VECR465 | 450-465mm |
Also available with nitrile sleeves (add ‘N’ to the product code when enquiring or placing an order).
All of the above codes come complete with 304SS Tension Bands, for situations where there is a higher risk of corrosion or contaminated ground and marine enviorments, the above can be supplied with 316SS Tension bands (add ‘A’ to the product codes when enquiring or placing an order).
