Standard Large Couplings (VLC)

Whatever the scale of your sealing challenge, our large couplings are engineered, designed and custom built to solve it.

  • Product Range
    Standard Large Couplings
  • Product Type
    Coupling (VLC)
  • Material
    EPDM
  • Size Range
    600mm+ (Bespoke Made)

Whatever the scale of your sealing challenge, our large couplings are engineered, designed and custom built to solve it.

Using bespoke extrusion profiles to enable us to manufacture custom seals for any diameter of pipe, our large coupling come with same day or next day delivery.

All standard couplings comply with the following

  • BS EN295-4
  • WIS 4-41-01
  • DIBT/MPA (Germany)
  • VA (Scandinavia)
  • WSAA – AS/NZS 4327 (Australasia)
  • BS EN16397

VLC Standard large coupling applications:

  • As a coupling to join plain ended pipes
  • To repair damaged sections of pipe
  • Where a post or lateral connection is required
  • Where the diameters of pipe differ
  • Joining short and cut lengths of pipe
  • Introducing rocker pipes to an outside structure or manhole
Ref No.Size RangeWidth
VLC600601-699mm190mm
VLC700700-799mm190mm
VLC800800-899mm190mm
VLC900900-999mm190mm
VLC10001000-1099mm190mm
Ref No.Size RangeWidth
VLC11001100-1199mm190mm
VLC12001200-1299mm190mm
VLC13001300-1399mm190mm
VLC14001400-1499mm190mm
VLC15001500-1599mm190mm
Ref No.Size RangeWidth
VLC16001600-1699mm190mm
VLC17001700-1799mm190mm
VLC18001800-1899mm190mm
VLC19001900-1999mm190mm
VLC20002000-2099mm190mm

Also available with nitrile sleeves (add ‘N’ to the product code when enquiring or placing an order).

All of the above codes come complete with 304SS Tension Bands, for situations where there is a higher risk of corrosion or contaminated ground and marine enviorments, the above can be supplied with 316SS Tension bands (add ‘A’ to the product codes when enquiring or placing an order).

Note:

VIPSeal VLC Large Couplings are site specific and therefore made to order, larger sizes from 2099mm+ are available to order.

The size range is an indication of size for pricing purposes only, (it is not a pipe OD range that each individual seal will fit) as each seal is made bespoke to order.

Pipe OD will be required at the time of order and each seal will be manufactured the the specification supplied.

Installation Video

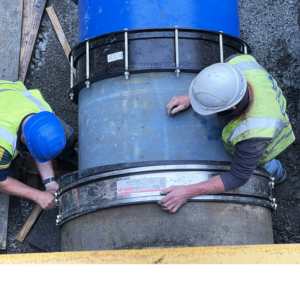

VLC Install Image

Installation Guide

From cutting the pipe to achieving a complete watertight seal, our step by step walkthrough shows you exactly how to install our standard couplings.

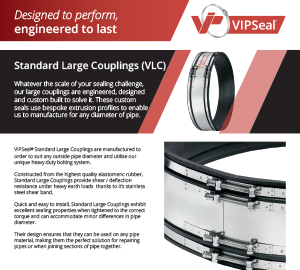

Standard Large Couplings (VLC)

View all sizing options for VIPSealĀ® standard large couplings in our information table.
