How to Choose the Right Pipe Coupling for Drainage Applications
Choosing the right pipe coupling can make all the difference when connecting or repairing drainage pipework.
At first glance, many flexible couplings look similar. However, differences in pipe diameter, material, ground conditions and access can determine which product will work best.
Whether you’re joining two different pipe materials, repairing damaged drainage pipes or connecting into an existing system, selecting the correct coupling helps achieve a secure and watertight connection.
Here, we look at the main VIPSeal coupling options and answer some common questions about pipe coupling selection.
How to choose the right pipe coupling
Before selecting a coupling, it’s important to understand the requirements of the installation.
Start by considering:
- Pipe outside diameter: Measure both pipes accurately, rather than relying on nominal pipe sizes.
- Pipe materials: Check whether you’re joining plastic, clay, concrete, cast iron or another material.
- Difference in diameter: Determine whether a standard coupling will fit or whether an adaptor is required.
- Ground conditions: Consider the external loads and support around the joint.
- Operating conditions: Check pressure, temperature and potential chemical exposure.
- Access: Make sure there is enough space to install the coupling correctly.
Once you have these details, choosing the right product becomes much easier.

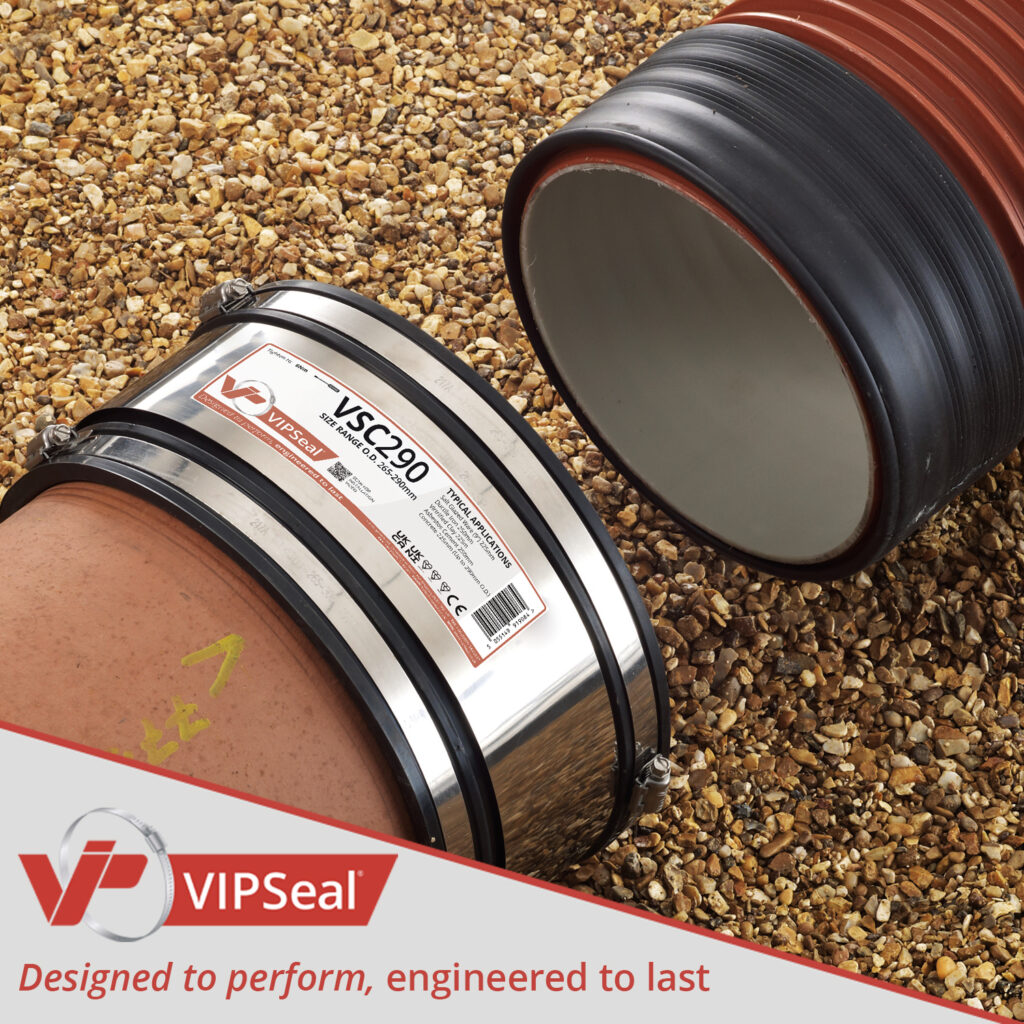

Standard Couplings (VSC)
VIPSeal Standard Couplings offer a practical solution for joining plain-ended drainage pipes and repairing damaged sections.
They use an EPDM rubber sleeve with stainless steel tension bands. In addition, a stainless steel shear band helps resist deflection and shear forces caused by external loads.
The VSC range covers pipe outside diameters from 50mm to 620mm.
Contractors commonly use these couplings for drainage repairs, connecting different pipe materials and joining short or cut lengths of pipe.
View VIPSeal Standard Couplings
Adaptor Couplings (VAC)
What happens when two pipes have significantly different outside diameters?
This is where VIPSeal Adaptor Couplings come in.
Their stepped rubber design accommodates the difference between pipe sizes, while stainless steel tension bands secure the connection.
As a result, contractors can join different pipe sizes without needing a more complicated pipe alteration.
The VAC range covers outside diameters from 35mm to 420mm, depending on the product selected. VIPSeal also offers VAR adaptors for connections involving clay and structured wall plastic pipes.
Explore VIPSeal Adaptor Couplings

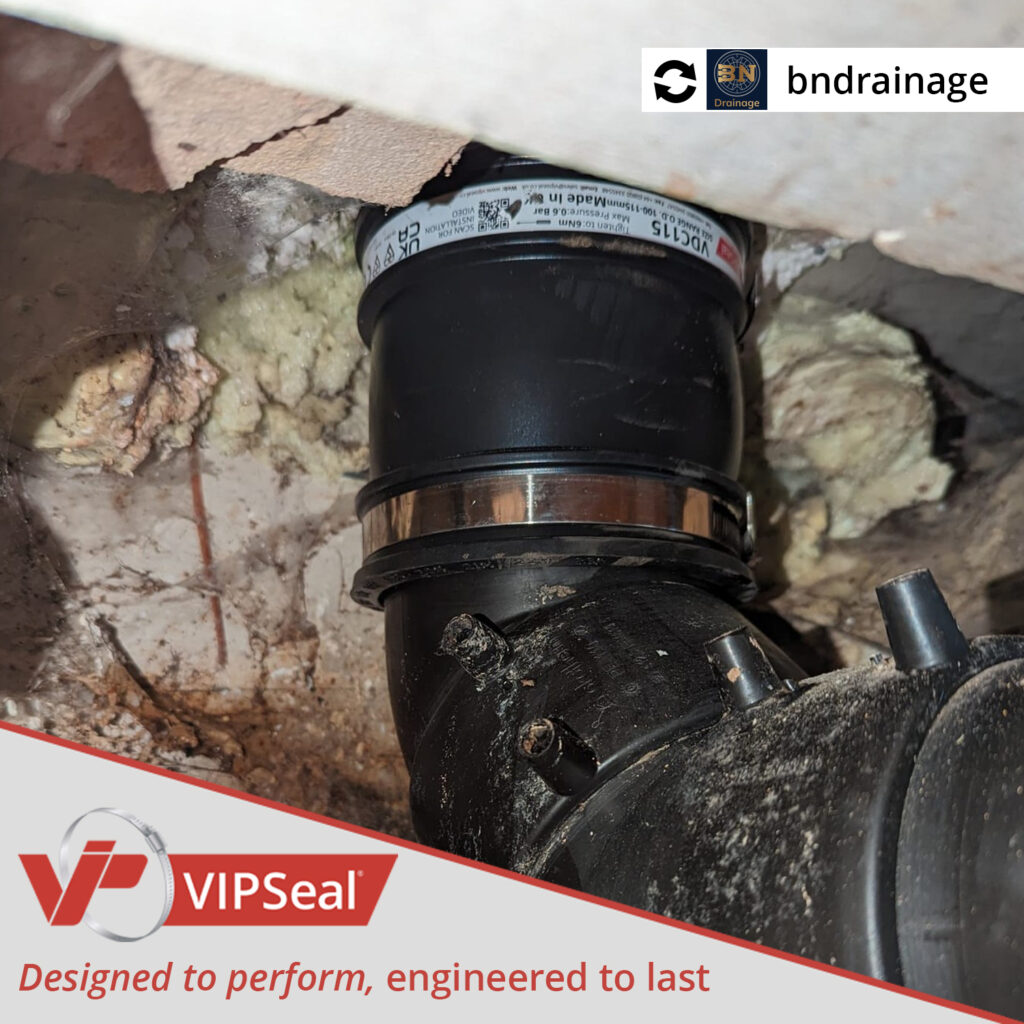

Drain Couplings (VDC)
VIPSeal Drain Couplings provide another option for low and non-pressurised drainage applications.
Unlike standard couplings, the VDC range does not include a stainless steel shear band.
Installers can use these couplings to join plain-ended pipes, connect cut lengths or carry out drainage repairs where the installation conditions suit this type of connection.
However, contractors should always consider pipe support and loading before choosing between a drain coupling and a shear-banded standard coupling.
Large Diameter and Specialist Couplings
Not every repair involves standard pipe sizes.
For larger projects, VIPSeal also manufactures bespoke large diameter couplings (VLC) and extra wide couplings (VSCW/VLCW).
These products provide additional options for large pipes or repairs requiring greater sealing coverage.
Furthermore, the wider VIPSeal range includes specialist solutions such as chemical resistant FKM couplings and IN-X internal pipe connections for applications where standard external couplings may not suit the installation.
This gives contractors more flexibility when dealing with unusual pipe sizes, materials or site conditions.
Frequently Asked Questions About Pipe Couplings
Can flexible couplings join pipes made from different materials?
Yes. Suitable flexible couplings can connect different pipe materials, including plastic, clay, concrete and cast iron. However, the coupling must suit the outside diameters and operating conditions of both pipes.
Can I connect two pipes with different outside diameters?
Yes. VIPSeal Adaptor Couplings accommodate significant differences in pipe diameter. Alternatively, certain standard coupling installations can use a suitable rubber bush to bridge the difference.
Should I select a pipe coupling using the nominal pipe diameter?
No. Always check the actual outside diameter of both pipes. Different pipe materials can have different outside diameters, even when they share the same nominal size.
What is the difference between a standard coupling and a drain coupling?
The main difference is the shear band. VIPSeal Standard Couplings include a stainless steel shear band to help resist external shear forces and deflection. Drain Couplings do not have this additional band, so the installation requirements will determine which product is suitable.
Can flexible couplings withstand pressure?
Yes, but pressure ratings vary between product ranges. For example, VIPSeal VSC Standard Couplings have a stated maximum internal pressure rating of 2.5 bar when correctly installed. Always check the relevant product datasheet before selecting a coupling for pressure applications.
What if I cannot access the outside of the pipe?
Where external access is limited, the VIPSeal IN-X Internal Coupling may provide an alternative. Its internal sealing design allows installers to create a connection from inside compatible pipework.
What information do I need when ordering a pipe coupling?
For the best product selection, provide the outside diameter of each pipe, pipe material, application and any unusual site conditions. You should also confirm whether the connection needs to withstand pressure, chemical exposure or additional external loading.
Choosing the Right VIPSeal Solution
Every drainage installation presents different challenges. Therefore, choosing the correct coupling is about more than simply matching a pipe diameter.

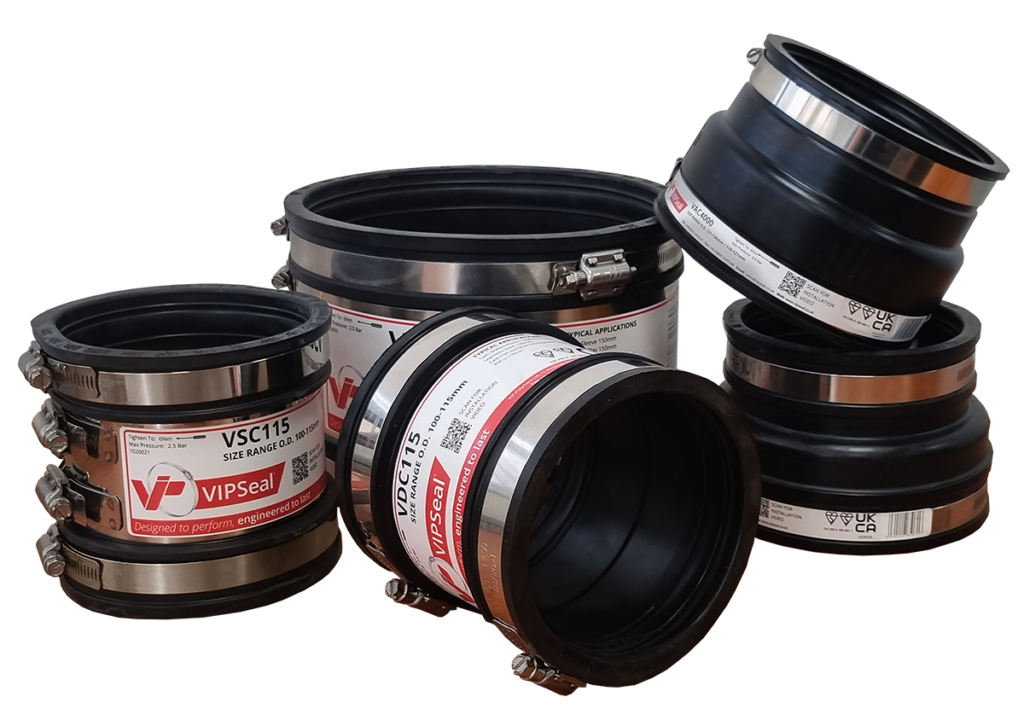

With standard, drain, adaptor, large diameter and specialist coupling options, VIPSeal offers a wide range of solutions for drainage installation and repair work.
Where applicable, contractors and specifiers should also consider recognised industry standards such as BS EN 295-4, which covers requirements for adaptors, connectors and flexible couplings used in drainage and sewer systems.
Explore the full VIPSeal product range, access our technical datasheets, or contact the VIPSeal sales team for help finding the right coupling for your application.
