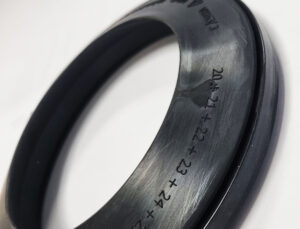

The VWS-570 is a single lip seal, used for connecting PVC pipes to thin-walled PVC, PE or metallic tanks and pipes.
The VWS-570 fits around the inside diameter of the access hole. The design of the seal provides excellent sealing performance & significant angular deflection possibilities.
- Ideal solution for connecting to thin-walled tanks and pipes.
- Simple and easy to use with either prefabricated or drilled holes.
- Excellent angular deflection possibilities.
Seal Design & Function
The VWS-570 is a single lip seal, used for connecting PVC pipes to thin walled PVC, PE or metallic tanks and pipes.
The VWS-570 fits around the inside diameter of the access hole. The design of the seal provides excellent sealing performance & significant angular deflection possibilities.
| Dia. External Connecting Pipe | Product Code | Material | Dia. Hole (±0.5) | Wall Thickness (approx) |
|---|---|---|---|---|
| DN100 | VWS570-100 | EPDM* | 110mm | 3-8mm |
| VWS570-100N | NBR** | 110mm | 3-8mm | |
| DN110 | VWS570-110 | EPDM* | 117mm | 3-8mm |
| VWS570-110N | NBR** | 117mm | 3-8mm | |
| DN125 | VWS570-125 | EPDM* | 132mm | 5-8mm |
| VWS570-125N | NBR** | 132mm | 5-8mm | |
| DN160 | VWS570-160 | EPDM* | 170mm | 5-8mm |
| DN200 | VWS570-200 | EPDM* | 205mm | 6-8mm |
* EPDM used for general applications ** NBR used for Hyrdrocarbon applications
NB. Pipe connections with VWS570 shall always be laid in accordance with applicable standards and regulations.
